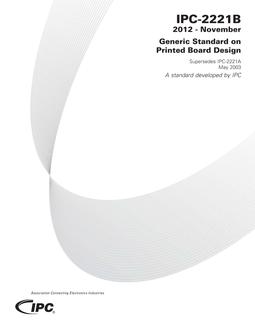

IPC 2221B – Generic Standard on Printed Board Design
IPC-2221B is the foundation design standard for all documents in the IPC-2220 series. It establishes the generic requirements for the design of printed boards and other forms of component mounting or interconnecting structures, whether single-sided, double-sided or multilayer. Among the many updates to Revision B are new criteria for conductor characteristics, surface finishes, via protection, board electrical test, dielectric properties, board housings, thermal stress, compliant pins, panelization and internal and external foil thicknesses. Appendix A provides new test coupon designs used for lot acceptance and quality conformance testing.
Product Details
- Published:
- 11/01/2012
- Number of Pages:
- 184
- File Size:
- 1 file , 3.8 MB
- Product Code(s):
- 2221-STD-0-D-0-JP-B
- Note:
- This product is unavailable in Russia, Ukraine, Belarus
